NA-9189
|
| Communication Interface Specifications |
| Adapter Type |
Slave node (MODBUS/TCP Server) |
| Max. Expansion Module |
32 slots |
| Max. Input Size |
252bytes |
| Max. Output Size |
252bytes |
| Max. Length Bus Line |
Up to 100m from Ethernet Hub/Switch with twisted CAT 3 UTP/STP |
| Max. Nodes |
Limited by Ethernet Specification |
| Baud rate |
10/100Mbps, Auto-negotiation, Full duplex |
| Protocol |
8 MODBUS/TCP, 4 HTTP, BOOTP. TBD |

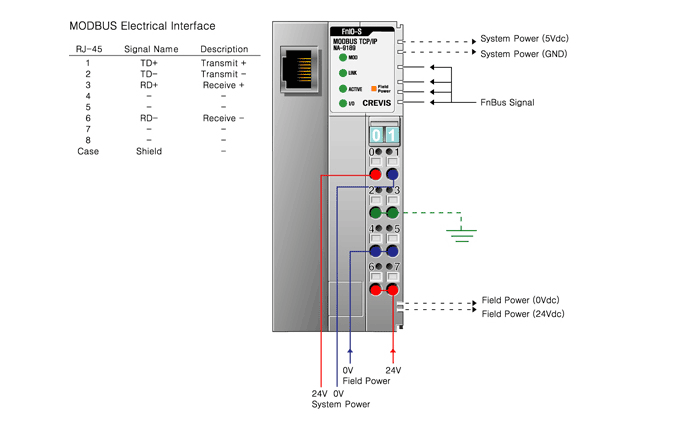

| Interface Connector |
RJ-45 socket |
| IP-Address Setup |
Via ARP, BOOTP. |
| Indicator |
|
5 LEDs
1 Green/Red, Module Status (MOD)
1 Green, Link Status (LINK)
1 Green, Active Status (Active)
1 Green/Red Expansion I/O Module Status (I/O)
1 Green, Field Power Status |
| Module Location |
Starter module left side of FnIO system |
| Field Power Detection |
About 11Vdc |
| General Specification |
| System Power |
|
Supply voltage : 24Vdc nominal
Supply voltage range : 11~28.8Vdc
Protection : Output current limit(Min. 1.5A)
Reverse polarity protection |
| Power Dissipation |
60mA typical @24Vdc |
| Current for I/O Module |
1.5A @5Vdc |
| Isolation |
System power to internal logic : Non-isolation
System power to I/O driver : Isolation |
| Field Power |
|
Supply voltage : 24Vdc nominal
Supply voltage range : 11~28.8Vdc |
| Max. Current Field Power Contact |
DC 10A Max. |
| Weight |
150g |
| Module Size |
45mm x 99mm x 70mm |
