NA-9171 |
| Communication Interface Specifications |
| Adapter Type |
Slave node (MODBUS Serial RTU/ASCII Server) |
| Max. Expansion Module |
32 slots |
| Max. Input Size |
126words (252bytes) |
| Max. Output Size |
126words (252bytes) |
| Max. Length Bus Line |
15m(NA-9171, RS232) |
| Max. Nodes |
1 node(NA-9171, RS232) |
| Baud rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200bps |
| Protocol |
RTU and ASCII |

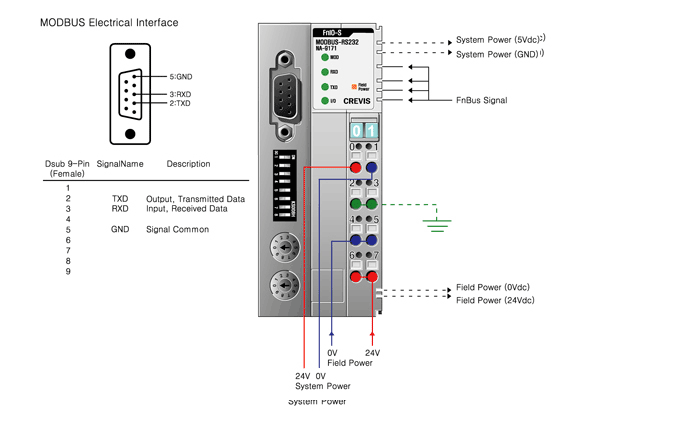

| Interface Connector |
Dsub 9pin (Female) |
| Settable Node Address |
1~99 with two rotary switches |
| Indicator |
|
5 LEDs
1 Green/Red, Module Status (MOD)
1 Green, Received Data (RXD)
1 Green, Transmit Data (TXD)
1 Green/Red Expansion Module Status (I/O)
1 Green, Field Power Status |
| Module Location |
Starter module left side of FnIO system |
| Field Power Detection |
About 11Vdc |
| General Specification |
| System Power |
|
Supply voltage : 24Vdc nominal
Supply voltage range : 11~28.8Vdc
Protection : Output current limit(Min. 1.5A)
Reverse polarity protection |
| Power Dissipation |
70mA typical@24Vdc |
| Current for I/O Module |
1.5@5Vdc |
| Isolation |
|
System power to internal logic : Non-isolation
System power to I/O driver : Isolation |
| Field Power |
|
Supply voltage : 24Vdc nominal
Supply voltage range : 11~28.8Vdc |
| Max. Current Field Power Contact |
DC 10A Max. |
| Weight |
150g |
| Module Size |
45mm x 99mm x 70mm |
