Fnio S-series

DeviceNet (Na-9111/9112)

다운로드 하시면 제품에 대해 상세하게 살펴보실 수 있습니다.

  • 제품특징
    • - NA-9188은 EtherNet/IP Network Adapter이며, RJ-45 Connector를 통하여 EtherNet에 연결합니다.
    • - NA-9188은 Master/Slave 환경에서 Slave 역할을 합니다.
    • - NA-9188은 최대 2016 digital input/2016 digital output 또는 126 analog input/126 analog output Channels들을 처리할 수 있습니다.
    • - NA-9188은 diagnostic 기능(Module 상태, Network 상태, Link 상태, Expansion Unit 상태, Field power 상태)을 위한 Indicator 들이있습니다.
    • - 통신속도는 10M~100Mbps까지의 통신속도를 지원하며 Auto baud rate를 지원합니다.
    • - IP는 Command Window를 사용하여 지정합니다.

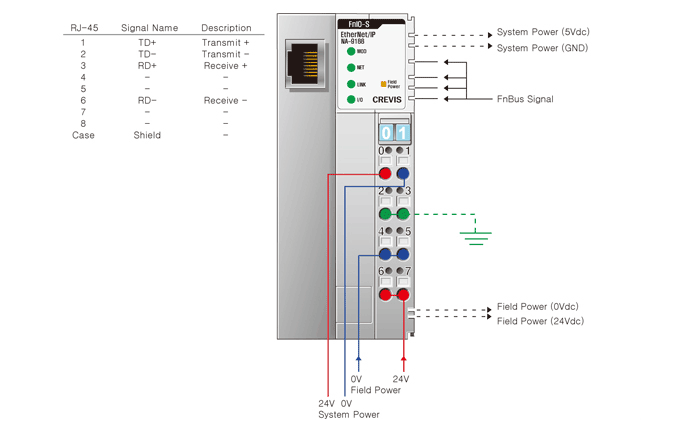

  • Structure
    • 구조
  • Specifications
    •   NA-9188
      Communication Interface Specifications
      Adapter Type Level 2 I/O Server (Explicit, I/O Message)
      Max. Expansion Module 32 slots
      Max. Input Size 252bytes
      Max. Output Size 252bytes
      Max. Length Bus Line Up to 100m from Ethernet Hub/Switch with twisted CAT 3 UTP/STP
      Max. Nodes Limited by Ethernet Specification
      Max. Connection   16 IO message connections
      64 CIP connections
      64 Explicit message connections
      Data transfer rate 10/100Mbps, Auto-negotiation, Full duplex
      Protocol Ethernet/IP, BOOTP
      Interface Connector RJ-45 socket
      IP-Address Setup Via BOOTP
      Indicator   5 LEDs
      1 Green/Red, Module Status (MOD)
      1 Green, Network Status (NET)
      1 Green, Link/Active Status (LINK)
      1 Green/Red Expansion I/O Module Status (I/O)
      1 Green, Field Power Status
      Module Location Starter module left side of FnIO system
      Field Power Detection About 11Vdc
       General Specification
      System Power   Supply voltage : 24Vdc nominal
      Supply voltage range : 11~28.8Vdc
      Protection : Output current limit(Min. 1.5A)
      Reverse polarity protection
      Power Dissipation 60mA typical @24Vdc
      Current for I/O Module 1.5A @5Vdc
      Isolation   System power to internal logic : Non-isolation
      System power to I/O driver : Isolation
      Field Power   Supply voltage : 24Vdc nominal
      Supply voltage range : 11~28.8Vdc
      Max. Current Field Power Contact DC 10A Max.
      Weight 150g
      Module Size 45mm x 99mm x 70mm
