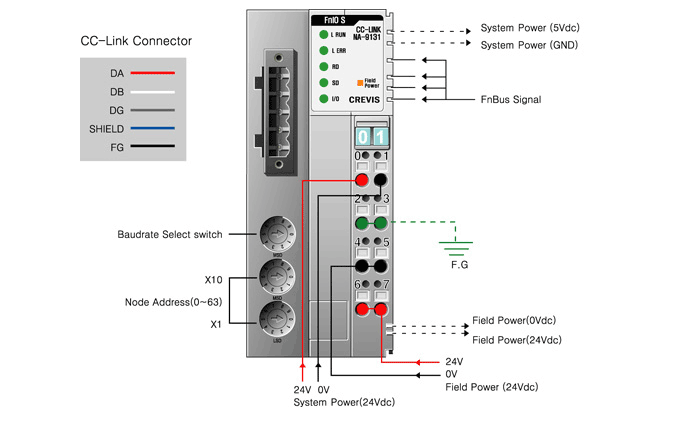

NA-9131 |
| Communication Interface Specifications |
| Protocol Version |
Version 1 |
| Station Type |
Remote Device Station |
| Number of Nodes |
42 Node/Max (Rotary switch# 0~99). |
| Number of Expansion I/O Slot |
Max. 32 slots |
| I/O Data Size |
|
System area : 16 points
RX / RY : 112 points(4 Stations occupied)
RWr/RWw : 16 points(4 Stations occupied) |
| Indicators |
|
1 green L RUN Status Indicator
1 red L Error Status Indicator
1 green SD Status Indicator
1 green RD Status Indicator
1 green/red Expansion Module Status indicator
1 green Field Power Status indicator |
| Communication Rate |
156/625/2500/5000/10000 kbps |
| Module Location |
Starter module - left side of FnIO system |
| General Specification |
| System Power |
|
Supply voltage : 24Vdc nominal
Voltage range : 11~28.8Vdc
Protection : Output Current Limit (Min. 1.5A)
Reverse Polarity protection |
| Power Dissipation |
60mA Typical @24Vdc |
| Current for I/O Module |
1.5A @ Max. 5Vdc |
| Isolation |
|
System power : Non-isolation
System to Logic : Isolation |
| Field Power |
|
Supply voltage : 24Vdc nominal
Voltage range : 11~28.8Vdc |
| Current in Jumper Contacts |
DC 10A Max. Capacity |
| Weight |
155g |
| Module Size |
45mm x 99mm x 70mm |
