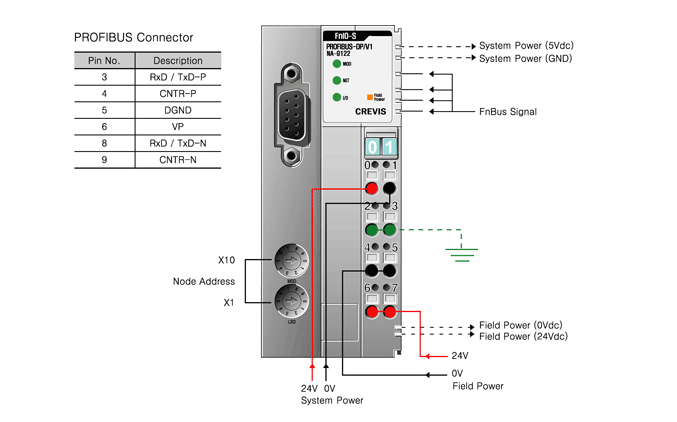

NA-9122 |
| Communication Interface Specifications |
| Redundancy |
Not supported |
| Repeater Control Signal |
RS-485 Signal |
| Freeze mode |
Support |
| Sync mode |
Sync mode |
| Auto baudrate |
Support |
| Fail safe mode |
Support |
| Station type |
Slave |
| FMS support |
Not supported |
| Number of Station |
100 Station/Max (Rotary switch #0~99) |
| Number of Expansion I/O slots |
Max. 32 slots |
| I/O Data Size |
|
Total: Input 128bytes / Output 128bytes
- Max. Discrete I/O: Input 1024points/Output 1024points
- Max. Analog I/O: Input 64channels/Output 64channels |
| Indicators |
|
1 green/red Module Status Indicator
1 green Network Status Indicator
1 green/red Expansion Module Status indicator
1 green Field Power Status indicator |
| Communication Rate |
9.6K(1.2km)~12Mbps(100m) |
| Communication Speed |
9.6 to 12000 Kbps (Auto baudrate selection) |
| Module Location |
Starter module - left side of FnIO system |
| Field Power detection |
Detect Field Power @11Vdc |
| General Specification |
| System Power |
|
Supply Voltage : 24Vdc nominal
Voltage Range : 11~28.8Vdc,
Protection : Output Current Limit (Min. 1.5A), Reverse Polarity Protection |
| Power Dissipation |
60mA Typical @ 24Vdc |
| Current for I/O Module |
1.5A @ Max. 5Vdc |
| Isolation |
|
System power : Non-isolation
System to Logic : Isolation |
| Field Power |
|
Supply voltage : 24Vdc nominal
Voltage range : 11~28.8Vdc |
| Current in Jumper Contacts |
DC 10A Max. |
| Weight |
155g |
| Module Size |
45mm x 99mm x 70mm |
