Fnio S-series

제품특징
- - NA-9187은 PROFINET I/O RT Protocol을 지원하는 Adapter이며, RJ-45 Connector를 통하여 PROFINET에 연결합니다.
- - NA-9187을 PROFINET I/O Controller/Device 환경에서 PROFINET IO Device 역활을 합니다.
- - NA-9187은 최대 1024 digital input/1024 digital output 또는 64 analog input/64 analog output Channels들을 처리 할수 있습니다.
- - NA-9187의 연결방식은 Line 연결 또는 Star topology를 사용하며, 최대 Station은 EtherNet Spec.에 따릅니다.

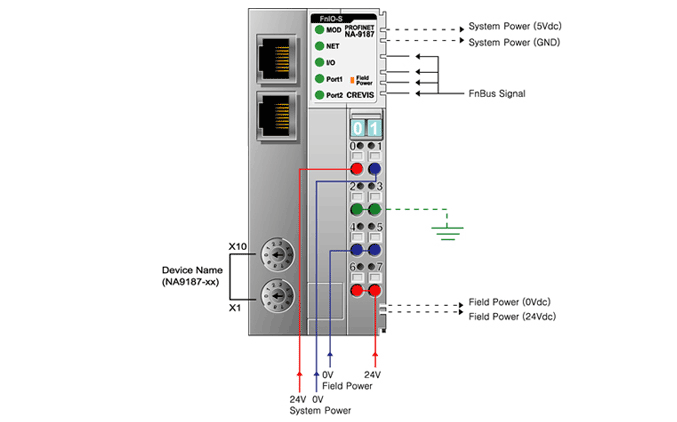

Structure

	NA-9187
Communication Interface Specifications
Protocol	PROFINET I/O RT
Station Type	PROFINET I/O Device
Topology	Line or Star topology
Number of Nodes	Limited by the IP address
Number of Expansion I/O slots	Max. 32 slots
I/O Data Size	252 bytes Input / 252 bytes Outputs
Indicators		1 green/red MOD Status Indicator 1 green/red NET Status Indicator 1 green/red I/O Status Indicator 1 green Port1 Link/Active Status Indicator 1 green Port2 Link/Active Status Indicator 1 green Field Power Status indicator
Communication Rate	100Mbps
Module Location	Starter module - Left side of FnIO System
General Specification
System Power		Supply voltage : 24Vdc nominal Voltage range : 11~28.8Vdc Protection : Output Current Limit(Min. 1.5A) Reverse Polarity Protection
Power Dissipation	115mA typical @24Vdc
Isolation		System power : Non-isolation System to Logic : Isolation
Field Power		Supply voltage : 24Vdc nominal voltage range : 11~28.8Vdc
Protection Class	IP20
Operating Temperature	0~+ 55℃
Storage Temperature	-25~ + 85
Humidity	90% no condensation
Current in Jumper Contacts	DC 10A Max.
Weight	150g
Module Size	45mm x 99mm x 70mm
Current in Jumper Contacts	DC 10A Max.
